Fig. 2 | Malaria Journal

Fig. 2

From: Depleted circulatory complement-lysis inhibitor (CLI) in childhood cerebral malaria returns to normal with convalescence

Fig. 2

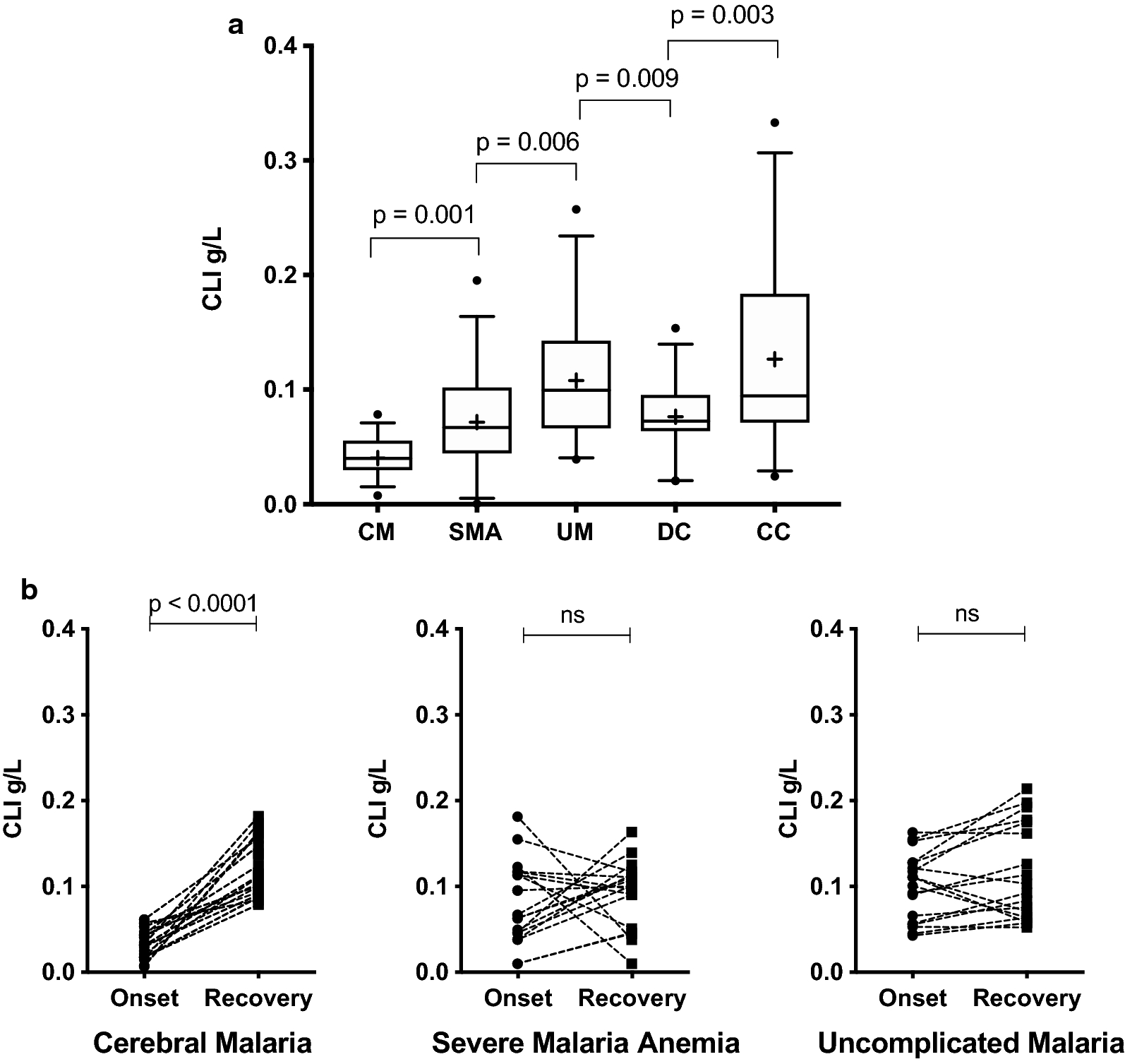

Plasma CLI concentration in clinical malaria syndromes both at acute onset and at recovery. a Plasma CLI protein level in clinical malaria syndromes at acute onset CM (0.04 ± 0.01); SMA (0.07 ± 0.04); UM (0.11 ± 0.05); DC (0.07 ± 0.03); CC (0.13 ± 0.08). b Two time-point graph showing levels of CLI at onset and recovery (paired samples) in the CM, SMA and UM groups, respectively. CLI complement-lysis inhibitor, CM = cerebral malaria, SMA severe malaria anaemia, UM uncomplicated malaria, DC disease controls, CC community controls; (mean ± standard deviation) g/L
