The malaria parasite Plasmodium falciparum in red blood cells selectively takes up serum proteins that affect host pathogenicity
Malaria Journal volume 19, Article number: 155 (2020)
The malaria parasite Plasmodium falciparum is a protozoan that develops in red blood cells (RBCs) and requires various host factors. For its development in RBCs, nutrients not only from the RBC cytosol but also from the extracellular milieu must be acquired. Although the utilization of host nutrients by P. falciparum has been extensively analysed, only a few studies have reported its utilization of host serum proteins. Hence, the aim of the current study was to comprehensively identify host serum proteins taken up by P. falciparum parasites and to elucidate their role in pathogenesis.
Plasmodium falciparum was cultured with human serum in vitro. Uptake of serum proteins by parasites was comprehensively determined via shotgun liquid chromatography–mass spectrometry/mass spectrometry and western blotting. The calcium ion concentration in serum was also evaluated, and coagulation activity of the parasite lysate was assessed.
Three proteins, vitamin K-dependent protein S, prothrombin, and vitronectin, were selectively internalized under sufficient Ca2+ levels in the culture medium. The uptake of these proteins was initiated before DNA replication, and increased during the trophozoite and schizont stages, irrespective of the assembly/disassembly of actin filaments. Coagulation assay revealed that prothrombin was activated and thereby induced blood coagulation.
Serum proteins were taken up by parasites under culture conditions with sufficient Ca2+ levels. This uptake phenomenon was associated with their pathogenicity.
The malaria parasite Plasmodium falciparum is a protozoan that reproduces in red blood cells (RBCs) and requires various host factors for its development and survival. For instance, protozoan parasites, including Plasmodium spp., rely on salvaging purines from the host as they are unable to synthesize purine rings de novo . Furthermore, the parasites acquire amino acids as well as iron ions from the haemoglobin of their host cells. Interestingly, haemoglobin does not contain isoleucine and is low in several amino acids, such as methionine, causing these amino acids to be imported from the extracellular milieu . Although the uptake mechanism of nutrients from the extracellular milieu has been intensively analysed , few studies have reported the uptake of host serum proteins. For example, ovalbumin, P. falciparum histidine-rich protein 2, human serum albumin (HSA), β-galactosidase, β-amylase, and horseradish peroxidase (HRP) are taken up and digested by the parasite after addition to the parasite culture medium [4, 5]. Kininogen is also taken up and modified to form bradykinin as well as other kinins, via intracellular proteolysis, which then elicits a calcium response in human umbilical vein endothelial cells in vitro . Plasminogen is taken up and hydrolysed, facilitating the production of active angiostatin-like fragments that function to modulate host physiology during infection . Furthermore, Tougan et al.  demonstrated that vitronectin is taken up by parasite-infected RBCs (iRBCs) where it binds directly to the P47 domain of serine repeat antigen 5 (SERA5), thereby camouflaging the parasite and enabling its evasion of the host immune system.
Ca2+ is essential for parasite development during the erythrocytic stage . Plasma Ca2+, specifically, contributes to merozoite invasion of RBCs, as well as parasite development in RBCs [10,11,12]. Cytoplasmic Ca2+ concentration has been shown to slowly increase during parasite development, activating both host and parasite proteases during the schizont stage, and inducing merozoite egress from iRBCs [13,14,15]. Furthermore, plasma Ca2+ is required for host blood coagulation . Activation of blood coagulation is frequently observed in patients with malaria, which subsequently induces inflammation and severe malaria-associated symptoms. In fact, the degree of coagulation activation is proportional to the severity of disease-related symptoms such as fever and disseminated intravascular coagulation (DIC) [17, 18]. Clinically apparent DIC is associated with severe outcomes and high mortality rates. During severely complicated malarial infection, the intrinsic coagulation pathway is activated by thrombin generation, which is pivotal for activation of the coagulation cascade . Activated thrombin cleaves the major parasite adhesive protein on the surface of iRBCs. Consequently, iRBC adhesion dramatically decreases, and adherent iRBCs detach .
In the present study, serum proteins taken up by P. falciparum were comprehensively identified. The associated mechanisms of serum proteins and their pathogenicity were also analysed. These analyses revealed that the parasites selectively take up serum proteins that are associated with malaria pathogenicity.
Reagents and antibodies
CaCl2 was prepared as a 1 M stock solution in saline (0.9% w/v sodium chloride; Otsuka Pharmaceutical, Tokushima, Japan). Chelators including, ethylenediaminetetraacetic acid (EDTA), ethylene glycol-bis(β-aminoethyl ether)-N,N,Nʹ,Nʹ-tetraacetic acid (EGTA), and tri-sodium citrate dihydrate (sodium citrate) were purchased from Nacalai Tesque (Kyoto, Japan) and prepared as a 100 mM stock solution in saline. Heparin sodium (1000 IU/mL) was obtained from Mochida Pharmaceutical (Tokyo, Japan). Jasplakinolide (Jas; Abcam, Cambridge, UK), cytochalasin D (CytD; Wako, Osaka, Japan), and mycalolide B (MycB; Wako) were prepared as 10 mM stock solutions in dimethyl sulfoxide (DMSO; Nacalai Tesque). Phenylmethylsulfonyl fluoride (PMSF; Nacalai Tesque) and dabigatran etexilate (DE; Selleck Chemicals LLC, Houston, TX, USA) were prepared as 1 mM stock solutions in DMSO.
Mouse anti-SE36 and rabbit anti-EXP2/3C sera were prepared accordingly to previously described protocols [21, 22]. Anti-protein S polyclonal antibody (pAb) (16910-1-AP), anti-prothrombin pAb (24295-1-AP), anti-vitronectin pAb (15833-1-AP), anti-alpha-2-HS-glycoprotein pAb (16571-1-AP), anti-alpha-2-macroglobulin pAb (13545-1-AP), anti-band 3 pAb (18566-1-AP), anti-fibrinogen beta chain pAb (16747-1-AP), and rabbit control IgG (30000-0-AP) were obtained from Proteintech (Rosemont, IL, USA). Anti-C4b-binding protein alpha chain monoclonal antibody (mAb) (ab182140), anti-C5 pAb (ab46153), anti-apolipoprotein A-I pAb (ab7613), anti-apolipoprotein B-100 pAb (ab7616), anti-thrombin mAb (ab92621), and anti-Factor Xa pAb (ab111171) were obtained from Abcam. Anti-HSA pAb (A80-129P) was purchased from Bethyl Laboratories (Montgomery, TX, USA). Anti-human IgG heavy chain pAb (709-035-149) was procured from Jackson ImmunoResearch Laboratories (West Grove, PA, USA). Anti-β-Actin pAb (PM053-7) was purchased from MBL (Nagoya, Japan). Secondary antibodies, namely HRP- and fluorescence-conjugated secondary antibodies [anti-mouse IgG-HRP (115-035-166), anti-rabbit IgG-HRP (711-035-152), anti-goat IgG-HRP (805-035-180), and anti-rabbit IgG-Alexa Fluor 594 (711-585-152)] were purchased from Jackson ImmunoResearch Laboratories.
The following methods were employed for serum preparation (Additional file 1: Fig. S1). (1) Plasma-derived serum (PDS): plasma was collected from blood samples using a blood bag containing citrate-phosphate-dextrose solution (Terumo, Tokyo, Japan). Plasma and buffy coat (approximately 400 mL) were coagulated by the addition of 1 M CaCl2, followed by incubation at 37 °C for 4 h and subsequently at 4 °C overnight. (2) Naturally coagulated serum (NCS): blood samples were allowed to coagulate naturally at 37 °C for 1 h. After coagulation, serum was collected by centrifugation at 10,400×g for 20 min at 4 °C, followed by filtration through a 0.45-µm filter. Sera were then incubated at 56 °C for 30 min for complement inactivation. The concentration of Ca2+ in serum was measured using the Metallo assay kit LS (CPZIII; Metallogenics, Chiba, Japan), according to the manufacturer’s instructions.
Plasmodium falciparum strain 3D7 was cultured in RPMI 1640 medium supplemented with l-glutamine (0.5 g/L), HEPES (5.95 g/L), NaHCO3 (2 g/L), hypoxanthine (50 mg/L), gentamicin (10 mg/L), human serum (10%), and RBCs (haematocrit, 3%) in an atmosphere of 5% CO2, 5% O2, and 90% N2 at 37 °C, as described previously .
Ring stage-synchronized iRBCs were collected using the sorbitol synchronization technique . The RBCs were collected using centrifugation at 800×g for 5 min. The supernatant was discarded, and the cells were suspended in 5× volume of 5% d-sorbitol. The mixture was incubated for 10 min at room temperature (18–25 °C). The cells were washed twice with RPMI 1640 to remove the sorbitol and adjusted to a parasitaemia level of approximately 1.5% at 3% haematocrit. The collected iRBCs were continuously cultured for approximately 18 h. To prepare the parasite lysate, the following two methods were used. (1) Percoll method: the cultured iRBCs were collected by Percoll density gradient centrifugation (Percoll, 58.5%), as described previously by Tosta et al. . (2) Precipitation method: RBCs were collected and washed with saline by centrifugation at 800×g for 5 min at 4 °C. The resulting precipitate was lysed using 0.075% saponin in saline, and the lysate (designated as “parasite”) was collected and washed using saline by centrifugation at 10,400×g for 10 min at 4 °C. For the Percoll method, the supernatant containing RBC content (designated as “RBC”) was also collected and was used for western blotting.
Shotgun liquid chromatography–mass spectrometry/mass spectrometry (LC–MS/MS) analysis
The samples prepared by the Percoll method were subjected to SDS-PAGE, excised from the gel, and reduced with 10 mM dithiothreitol, followed by alkylation with 55 mM iodoacetamide and in-gel digestion with trypsin. The prepared samples were analysed using nanocapillary reversed-phase LC–MS/MS with a Magic C18 reverse phase column (0.1 × 150 mm) on a nano LC system (Thermo Fisher Scientific, Waltham, MA, USA) coupled to a quadrupole time-of-flight mass spectrometer (QTOF Ultima; Waters, Milford, MA, USA). Direct injection data-dependent acquisition was performed using one MS channel for every three MS/MS channels and dynamic exclusion for selected ions. The ion mode was set to positive. The dynamic exclusion was set to 30 s with 10 ppm tolerance. Proteins were identified by searching in the Swiss-Prot Human database using the Mascot Server (Matrix Science, Boston, MA, USA). A Mascot peptide significance threshold of p < 0.05 was used for post search filtering. MS error window was 10 ppm and MS/MS was 0.8 Da. To determine the uptake ratio of individual serum proteins, non-serum proteins (such as keratin, RBC component, and immunoglobulin light chains) were excluded from the analysis. The total spectral count (TSC) of each serum protein within the intact parasite lysate was individually compared with the TSC of a corresponding serum protein. The uptake ratio was calculated as follows: uptake ratio = TSC of isolated parasite lysate protein/TSC of serum protein.
Protease protection assay
To study the uptake of serum proteins into parasitophorous vacuoles (PV), a protease protection assay was performed as previously described [26, 27]. In brief, the cultured iRBCs were collected by the Percoll method, and the RBC membranes were lysed with 300 U streptolysin O (Sigma-Aldrich, St. Louis, MO, USA) for 10 min at room temperature (18–25 °C). The treated samples were centrifuged at 1000×g for 4 min at room temperature (18–25 °C) and the supernatant (designated as “RBC”) and pellet (designated as “PV”) were separated. This step was repeated twice and the pellet was suspended in phosphate-buffered saline (PBS) at a volume equal to that of the supernatant. The supernatant and pellet were treated either with 0.1 mg/mL proteinase K (Sigma-Aldrich) or PBS as a control for 30 min on ice followed by treatment with 2 mM PMSF and 1× protease inhibitor cocktail (Nacalai Tesque) for 3 min at room temperature (18–25 °C) to prevent further protease activity and were then used for western blotting.
The sera and lysate samples, purified by the Percoll or precipitation method, were suspended in sample buffer [NuPAGE LDS Sample Buffer (4×)] supplemented with a reducing reagent [NuPAGE Sample Reducing Agent (10×)] and resolved on a NuPAGE 4%–12% Bis-Tris gel using 1× NuPAGE MES SDS Running Buffer (Thermo Fisher Scientific). The separated proteins were transferred onto polyvinylidene fluoride membranes using iBlot (Thermo Fisher Scientific). The membranes were blocked with blocking buffer [PBS containing 0.05% (v/v) Tween 20 (PBS-T) with 5% (w/v) skim milk] for 30 min, and then incubated in blocking buffer containing primary antibodies or antiserum (all antibodies and antiserum were diluted 1:2000; save for the anti-prothrombin pAb and the anti-human IgG pAb-HRP, which were diluted 1:10,000) for 1 h. After washing with PBS-T, the membranes were incubated in blocking buffer containing the respective secondary antibody (1:10,000; anti-mouse IgG-HRP, anti-rabbit IgG-HRP, or anti-goat IgG-HRP) for 30 min. The membranes were washed with PBS-T, soaked in TMB Microwell Peroxidase Substrate System (KPL, Gaithersburg, MD, USA), and analysed using a LAS 4000 (GE Healthcare, Little Chalfont, UK). Densitometry of the observed bands was performed using ImageJ software, version 1.8.0 (NIH, Bethesda, MD, USA).
For confocal microscopy, the following two methods were adopted for sample preparation. (1) Methanol fixation: thin iRBC smears on glass slides were fixed using 100% methanol for 10 min, permeabilized using PBS containing 0.1% Triton X-100 for 5 min and washed with PBS. Samples were blocked using a blocking buffer (1% BSA in PBS) for 30 min, followed by incubation for 1.5 h in blocking buffer containing the respective primary antibodies (1:200; anti-protein S, prothrombin, or vitronectin pAb). After washing with PBS, samples were incubated in blocking buffer containing secondary antibodies (1:200; anti-rabbit IgG-Alexa Fluor 594) for 1.5 h. (2) Paraformaldehyde/glutaraldehyde fixation: iRBCs were pelleted, washed with PBS, and fixed in 4% paraformaldehyde and 0.0075% glutaraldehyde, as described by Tonkin et al. . They were then treated with blocking buffer (3% BSA in PBS) for 30 min and subsequently incubated for 1 h in blocking buffer containing the respective primary antibodies or antiserum (1:200, anti-prothrombin pAb; 1:1000, anti-EXP2/3C mouse serum). After washing with PBS, the slides were incubated in blocking solution containing the respective secondary antibodies (1:1000; anti-rabbit IgG-Alexa Fluor 488 or anti-mouse IgG-Alexa Fluor 568) for 1 h. The iRBCs were then transferred onto 1% polyethylenimine (PEI)-coated cover glass for 30 min. The samples were mounted using Vectashield with DAPI (Vector Labs, Burlingame, CA, USA). All samples were fixed using methanol fixation, save for those shown in Fig. 1b. Images were captured using an Olympus FV10i (Olympus, Tokyo, Japan).
Determination of parasite state
Light microscopy: a standard thin blood smear was fixed with 100% methanol for 10 min and stained with 10% Giemsa working solution, pH 7.2 (Merck KGaA, Darmstadt, Germany), for 13 min. Slides were observed under 1000× magnification using a model BX50 light microscope (Olympus, Tokyo, Japan). An automated haematology analyser XN-30 equipped with an algorithm for cultured P. falciparum parasites (prototype: software version 01-03, build 16) was used with dedicated reagents (CELLPACK DCL, SULFOLYSER, Lysercell M, and Fluorocell M) (Sysmex, Kobe, Japan) . Approximately 100 µL of culture suspension was aliquoted into a standard 1.5 mL microtube (Eppendorf Tubes 3810X; Eppendorf, Hamburg, Germany), and loaded into the XN-30 analyser as described in the manufacturer’s manual (Sysmex). Parasitaemia (total, MI-RBC%; ring-form, RNG-RBC%; trophozoite, TRPZ-RBC%; and schizont, SCHZ-RBC%) was automatically reported . However, as the XN-30 analyser detects DNA content, parasitaemia was overestimated due to the presence of dead parasites. Therefore, the M scattergram and parasitaemia level of parasites treated with antimalarial compounds must be compared with those of the negative control (DMSO) .
Fifty millilitres of NCS was incubated in saline supplemented with 10% culture medium, culture supernatant, or parasite lysate in 100 µL reaction buffer (20 mM Tris–HCl, 100 mM NaCl, with or without 2.5 mM CaCl2, pH 8.0). To inhibit the protease activity of thrombin, 10 µM PMSF or 10 µM DE was added to the reaction mixture, which was then incubated for 2 h at 37 °C. The supernatants were collected by centrifugation at 12,000×g for 5 min at 4 °C and were used for western blotting.
Serum proteins are selectively taken up into iRBCs by P. falciparum parasites

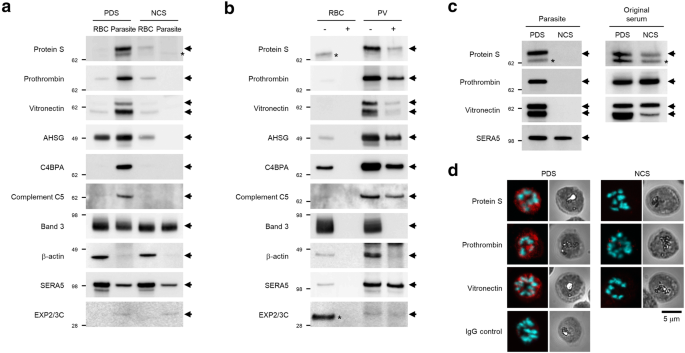

The total protein in plasma-derived serum (PDS), and within intact parasites in iRBCs cultured in PDS-containing culture medium was analysed by shotgun LC–MS/MS analysis. A total of 50 and 48 serum proteins were identified in the serum and isolated parasite lysate, respectively (Table 1, total spectral counts (TSCs) were 2.38–1850 and 0.86–129 in the serum and isolated parasite lysate, respectively). Comparative analysis revealed that vitamin K-dependent protein S (protein S) and prothrombin were taken up by intact parasites in a highly selective manner (Table 1; uptake ratio: protein S, 26.10; prothrombin, 10.36). The results of western blotting analysis were similar to those of the shotgun LC–MS/MS analysis (Fig. 1a). Although the uptake ratio of vitronectin was relatively low (3.99; Table 1) it was internalized in a strongly selective manner (Fig. 1a), as previously reported . These findings suggest that serum proteins were selectively taken up, rather than simply diffusing into iRBCs. Further, confocal microscopy showed that prothrombin was localized in iRBCs, most notably within parasitophorous vacuoles (PVs), during the trophozoite stage (Fig. 1b). Specifically, prothrombin was detected in iRBCs during development (Figs. 1c and 2b, PDS panels). Uptake of protein S, prothrombin, and vitronectin was also observed in the blood samples prepared from mice infected with the rodent malaria parasite Plasmodium yoelii (Additional file 1: Fig. S2), suggesting that similar uptake mechanisms are present among Plasmodium spp.
Uptake ability is dependent on the serum preparation method
To characterize the ability of P. falciparum to take up proteins, the parasites were cultured in a medium containing two types of serum: PDS and naturally coagulated serum (NCS) (see serum preparation in “Methods” and Additional file 1: Fig. S1). Serum proteins were only detected in the parasite lysate isolated from iRBCs cultured in PDS-containing culture medium but not in the lysate isolated from iRBCs cultured in NCS-containing medium (Fig. 2a). Further, proteins identified in the lysate from protease-treated PV partially resisted digestion, suggesting that these proteins were taken up by parasites (Fig. 2b). The enhanced uptake in parasites cultured in the PDS-containing culture medium was confirmed via detection of protein S, prothrombin, and vitronectin within intact parasite lysates (Fig. 2c). The difference in uptake activity between parasites cultured in PDS- and NCS-containing culture media was also observed in the CDC1 and W2 strains (Additional file 1: Fig. S3). In addition, confocal microscopy confirmed that protein S, prothrombin, and vitronectin were localized in parasites within RBCs cultured in PDS-, not NCS-containing culture media, indicating that uptake ability is dependent on the serum preparation method.
Plasma Ca2+ increased the uptake ability of parasites
The Ca2+ concentration in PDS and NCS was 17.3 ± 2.5 and 2.4 ± 0.32 mM, respectively (Fig. 3a); the Ca2+ concentration in normal serum is 2.2–2.6 mM . The Ca2+ concentration in PDS was approximately eightfold higher than that in NCS, whereas that in NCS was within the normal range (Fig. 3a). This finding indicated that the Ca2+ concentration in the PDS-containing culture medium was similar to that in normal serum since the culture medium contained 10% human serum (see parasite culture in “Methods”). The importance of the Ca2+ concentration of the culture medium for protein uptake was confirmed by the following strategies: (1) addition of Ca2+ to NCS; and (2) removal of Ca2+ from PDS. The addition of CaCl2 to the NCS-containing culture medium was expected to slightly improve parasite growth (Fig. 3b); however, the SERA5 expression levels were similar in the media with and without CaCl2 (see SERA5 in Fig. 3c). Additionally, the uptake ability was notably increased by the addition of CaCl2 to NCS (Fig. 3c), and decreased by the removal of Ca2+ from PDS (Fig. 3d), and in PDS-containing culture medium treated with Ca2+ chelators, EDTA, EGTA, and sodium citrate, but not with heparin that is not a Ca2+ chelator (Fig. 3e). These results indicate that a sufficient concentration of Ca2+ is required for uptake.
Uptake is initiated before DNA replication, irrespective of assembly/disassembly of actin filaments

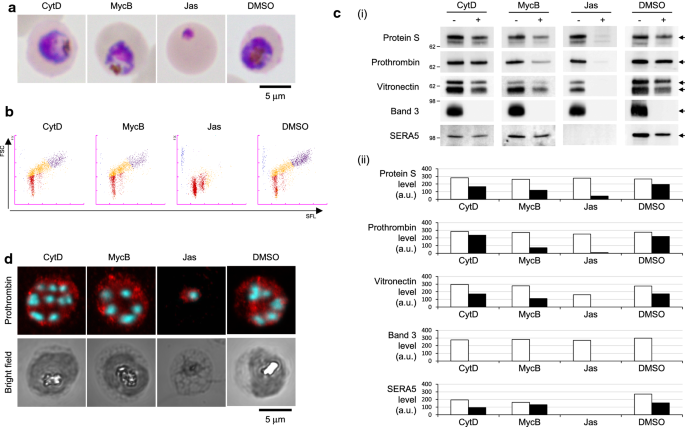

To further understand the uptake mechanism, three actin-perturbing agents, cytochalasin D (CytD), mycalolide B (MycB), and jasplakinolide (Jas) were added to the PDS-containing culture medium. CytD inhibits new assembly and MycB disassembles actin filaments, whereas Jas increases the assembly and stabilization of actin filament [32,33,34]. Parasite development was not noticeably affected by CytD and MycB, however, was arrested by Jas before DNA replication (Fig. 4a, b). Further, the uptake of serum proteins into the PV was slightly reduced by CytD and MycB treatment, suggesting that uptake occurs without the assembly/disassembly of actin filaments (Fig. 4c, d, CytD and MycB). Additionally, following Jas treatment serum proteins were detected at low levels in PV lysates (Fig. 4c, d, Jas) even though Jas arrested parasite development at the early stage (Fig. 4a, b, Jas and c, SERA5), suggesting that uptake is induced before DNA replication, as also shown in Fig. 1c.
Blood coagulation is induced by thrombin activated by parasite protease
A coagulation assay was performed to evaluate the effect of serum proteins taken up in iRBCs, on the host. The addition of PDS-culture supernatant but not PDS-containing medium alone and NCS-culture supernatant induced coagulation in a CaCl2-dependent manner (Fig. 5a, lanes 6, 4, and 10; fibrinogen was not detected after coagulation). These results suggest that internalized prothrombin was activated and caused the conversion of fibrinogen to fibrin. To test this hypothesis, a coagulation assay with two protease inhibitors, PMSF (a common serine protease inhibitor) and DE (a thrombin-specific protease inhibitor) was performed. Coagulation was inhibited by both PMSF and DE, suggesting that coagulation was induced by protease activity of thrombin activated by isolated parasite lysate (Fig. 5b, lane 3). Finally, to determine whether parasite-derived proteases produce thrombin from prothrombin and induce coagulation, a coagulation assay using parasite lysate isolated from iRBCs cultured in NCS-containing medium was performed. The addition of isolated parasite lysate to plasma-generated thrombin cleaved fibrinogen in a Ca2+-dependent manner (Fig. 5c, lane 6 in (i) and image 4 in (ii)); however, coagulation was not induced in the plasma or isolated parasite lysate alone, even in the presence of Ca2+ (Fig. 5c, lane 2 and 4 in (i) and image 2 in (ii)). Furthermore, Factor X, a prothrombin activator, was not internalized (Fig. 5c (i)), and Factor Xa (cleaved and activated Factor X) was not detected (Additional file 1: Fig. S4, blot was overexposed to highlight the absence of Factor Xa). These findings suggested that the thrombin generated by an unidentified parasite protease induced coagulation in a Ca2+-dependent manner.
The current study identified 50 and 48 proteins in the serum and isolated parasite lysate, respectively (Table 1, TSCs were 1850–2.38 in serum and 129–0.86 in isolated parasite lysate). The dynamic ranges of TSC were approximately 800-fold and 150-fold in serum and isolated parasite lysate, respectively. This reduced dynamic range in the lysate suggests that serum proteins were selectively taken up in iRBCs. The uptake ratio of seven selectively internalized serum proteins ranged from 26.10 to 1.09; protein S, prothrombin, and vitronectin had particularly high uptakes ratios (26.10, 10.36, and 3.99, respectively; Fig. 1 and Table 1). Conversely, the uptake ratios of serum albumin, and kininogen, plasminogen, which were previously reported to be internalized in iRBCs [4, 6, 7], were lower (0.07, 0.03, and 0.27, respectively; Table 1), while transferrin  was not detected (Table 1). This discrepancy may be due to the fact that our proteomic analysis did not detect rapidly degraded proteins in the digestive vacuole as the parasites procure amino acids such as isoleucine from the extracellular milieu ; in this case, their uptake ratio would be underrepresented in this analysis.
The uptake of serum proteins was CaCl2 concentration-dependent (Fig. 3) as protein trafficking requires Ca2+, which is essential for vesicle formation and fusion, protein conformation, and cytoskeleton remodelling . In addition, Ca2+ signalling pathways are critical throughout the life cycle of malaria parasites . Hence, cultivation without the addition of 2 mM CaCl2 for 48 h may have decreased parasite metabolism beyond protein transport alone. Therefore, the effects of low Ca2+ conditions on parasite metabolism must also be considered.
This study revealed that the uptake of serum proteins was detected in PV lysate treated with CytD and MycB, however, was lower or not detected, in PV lysate treated with Jas (Fig. 4c). Although Jas increases the assembly and stabilization of actin filaments , it is unclear whether this causes direct inhibition of protein uptake as parasite development was arrested at an early stage (Fig. 4a, b, Jas and c, SERA5). Hence, although the current study did not sufficiently demonstrate a relationship between the uptake mechanism and endocytosis, the study performed by Smythe et al.  reported that the uptake of preloaded recombinant HRP is inhibited by Jas, and not by CytD, suggesting that Jas does in fact inhibit endocytosis in the parasites. Further studies are required to more clearly elucidate the role of endocytosis in the protein uptake mechanism.
A comparison of the primary structures of these three internalized proteins revealed that both protein S and prothrombin have a γ-carboxyglutamic acid-rich (Gla) domain that is responsible for high-affinity binding to Ca2+ [38, 39]. This domain anchors proteins to cell membranes that expose phosphatidylserine (PS) in a Ca2+-dependent manner . In eryptosis, a type of programmed cell death for RBCs, Ca2+ influx into iRBCs exposes PS residues on the outer membrane leaflet . It is speculated that the serum proteins that bind to PS on the outer membrane leaflet of RBCs pass through the membrane via unknown mechanisms. Vitronectin does not contain this domain, but rather forms a complex with thrombin in serum  and may be taken up as the complex. Other Gla domain-containing proteins, such as Factor VII, IX, X, XIV, and inter-alpha-trypsin inhibitor heavy chain H2 had considerably lower uptake ratios (Table 1). These findings imply that the Gla domain and other factors determine uptake ability.
In terms of the total amount of proteins internalized in iRBCs, prothrombin and serum albumin were considerably more abundant than the other proteins (Table 1) (TSC in isolated parasite lysate: prothrombin, 135.46; serum albumin, 128.56). Although serum albumin is necessary for parasite growth [43, 44], the uptake of prothrombin is not essential in vitro (Figs. 2 and 3). Considering that the parasite-dependent activation of coagulation causes severe malarial complications , our findings provide further insights into the role of thrombin in eliciting symptoms during parasitic infection. In particular, the direct activation of prothrombin in isolated parasite lysate (Fig. 5c) implies that DIC was mediated in response to this reaction. In addition, it is also possible that activated thrombin detaches iRBCs from the cell surface. Activated thrombin cleaves the major parasite adhesive protein P. falciparum erythrocyte membrane protein 1 (PfEMP1) on the surface of iRBCs, dramatically reducing the adhesion of iRBCs and detaching iRBCs . Hence, parasites may promote their cytoadherence by selectively taking up serum thrombin that cleaves PfEMP1, or by eliminating host factors that could limit cytoadherence.
Protease(s) released from the digestive vacuole activate complement factors and coagulation . In the present study, although the coagulation assay demonstrated prothrombin activation in PDS-culture supernatant (Fig. 5a), it remains unclear whether the activated thrombin was released from the iRBCs or the released prothrombin was activated by the protease(s) in the PDS-culture supernatant.
Prothrombin is cleaved and activated by serine protease Factor Xa , implying that a parasite-derived serine protease cleaves and activates internalized prothrombin. The P. falciparum genome encodes 14 serine proteases, including two chymotrypsin-like, three subtilisin-like (known as PfSUB-1 to -3), and nine rhomboid protease clans . Since Factor Xa belongs to the PA clan (proteases of mixed nucleophile, superfamily A) and has a chymotrypsin-like fold, two chymotrypsin-like proteases (PF3D7_0807700 and PF3D7_0812200) are candidates for prothrombin digestion. These genes are highly expressed during the late ring stage to late schizont stage (PlasmoDB: http://plasmodb.org/plasmo/). PF3D7_0807700, known as PfDegP, plays an essential role in resistance to thermo-oxidative stress, thereby affecting parasite growth and development . Antibodies against DegP showed anti-plasmodial activity against erythrocytic stage parasites in vitro [48, 49], suggesting that PfDegP may be a potential target for new antimalarial therapies.
The present study showed that thrombin activated by parasite-derived proteases promotes coagulation (Fig. 5b). The previous study demonstrated that vitronectin binds directly to the P47 domain of SERA5, thereby camouflaging the parasite and enabling it to evade the host immune system . Although protein S is significantly taken up, its molecular function for parasite development remains uncharacterized. Protein S is an anticoagulant and may be cleaved and inactivated in iRBCs. Further studies are required to clarify the role of protein S in P. falciparum infection.
Serum proteins were selectively taken up by the parasites in culture conditions with sufficient Ca2+ levels. Among them, prothrombin was activated and caused blood coagulation. These findings suggest that the serum proteins taken up by P. falciparum parasites are associated with malaria pathogenicity.
Availability of data and materials
The datasets generated during and/or analysed during the current study are available from the corresponding author on reasonable request.
Ethylene glycol-bis(β-aminoethyl ether)-N,N,Nʹ,Nʹ-tetraacetic acid
- sodium citrate:
Tri-sodium citrate dehydrate
Red blood cell
Liquid chromatography–mass spectrometry/mass spectrometry
Naturally coagulated serum
Research Institute for Microbial Diseases
- Protein S:
Vitamin K-dependent protein S
C4b-binding protein alpha chain
Serine repeat antigen 5
Booden T, Hull RW. Nucleic acid precursor synthesis by Plasmodium lophurae parasitizing chicken erythrocytes. Exp Parasitol. 1973;34:220–8.
Martin RE, Kirk K. Transport of the essential nutrient isoleucine in human erythrocytes infected with the malaria parasite Plasmodium falciparum. Blood. 2007;109:2217–24.
Dean P, Major P, Nakjang S, Hirt RP, Embley TM. Transport proteins of parasitic protists and their role in nutrient salvage. Front Plant Sci. 2014;5:153.
El Tahir A, Malhotra P, Chauhan VS. Uptake of proteins and degradation of human serum albumin by Plasmodium falciparum-infected human erythrocytes. Malar J. 2003;2:11.
Smythe WA, Joiner KA, Hoppe HC. Actin is required for endocytic trafficking in the malaria parasite Plasmodium falciparum. Cell Microbiol. 2008;10:452–64.
Bagnaresi P, Barros NM, Assis DM, Melo PM, Fonseca RG, Juliano MA, et al. Intracellular proteolysis of kininogen by malaria parasites promotes release of active kinins. Malar J. 2012;11:156.
Melo PM, Bagnaresi P, Paschoalin T, Hirata IY, Gazarini ML, Carmona AK. Plasmodium falciparum proteases hydrolyze plasminogen, generating angiostatin-like fragments. Mol Biochem Parasitol. 2014;193:45–54.
Tougan T, Edula JR, Takashima E, Morita M, Shinohara M, Shinohara A, et al. Molecular camouflage of Plasmodium falciparum merozoites by binding of host vitronectin to P47 fragment of SERA5. Sci Rep. 2018;8:5052.
Garcia CR. Calcium homeostasis and signaling in the blood-stage malaria parasite. Parasitol Today. 1999;15:488–91.
Wasserman M, Alarcón C, Mendoza PM. Effects of Ca++ depletion on the asexual cell cycle of Plasmodium falciparum. Am J Trop Med Hyg. 1982;31:711–7.
Gao X, Gunalan K, Yap SS, Preiser PR. Triggers of key calcium signals during erythrocyte invasion by Plasmodium falciparum. Nat Commun. 2013;4:2862.
Weiss GE, Gilson PR, Taechalertpaisarn T, Tham WH, de Jong NW, Harvey KL, et al. Revealing the sequence and resulting cellular morphology of receptor–ligand interactions during Plasmodium falciparum invasion of erythrocytes. PLoS Pathog. 2015;11:e1004670.
Farias SL, Gazarini ML, Melo RL, Hirata IY, Juliano MA, Juliano L, et al. Cysteine-protease activity elicited by Ca2+ stimulus in Plasmodium. Mol Biochem Parasitol. 2005;141:71–9.
Garg S, Agarwal S, Kumar S, Yazdani SS, Chitnis CE, Singh S. Calcium-dependent permeabilization of erythrocytes by a perforin-like protein during egress of malaria parasites. Nat Commun. 2013;4:1736.
Glushakova S, Lizunov V, Blank PS, Melikov K, Humphrey G, Zimmerberg J. Cytoplasmic free Ca2+ is essential for multiple steps in malaria parasite egress from infected erythrocytes. Malar J. 2013;12:41.
Furie B, Furie BC. The molecular basis of blood coagulation. Cell. 1988;53:505–18.
Angchaisuksiri P. Coagulopathy in malaria. Thromb Res. 2014;133:5–9.
Francischetti IM, Seydel KB, Monteiro RQ. Blood coagulation, inflammation, and malaria. Microcirculation. 2008;15:81–107.
Clemens R, Pramoolsinsap C, Lorenz R, Pukrittayakamee S, Bock HL, White NJ. Activation of the coagulation cascade in severe falciparum malaria through the intrinsic pathway. Br J Haematol. 1994;87:100–5.
Gillrie MR, Renaux B, Russell-Goldman E, Avril M, Brazier AJ, Mihara K, et al. Thrombin cleavage of Plasmodium falciparum erythrocyte membrane protein 1 inhibits cytoadherence. MBio. 2016;7:e01120-16.
Yagi M, Bang G, Tougan T, Palacpac NM, Arisue N, Aoshi T, et al. Protective epitopes of the Plasmodium falciparum SERA5 malaria vaccine reside in intrinsically unstructured N-terminal repetitive sequences. PLoS ONE. 2014;9:e98460.
Bullen HE, Charnaud SC, Kalanon M, Riglar DT, Dekiwadia C, Kangwanrangsan N, et al. Biosynthesis, localization, and macromolecular arrangement of the Plasmodium falciparum translocon of exported proteins (PTEX). J Biol Chem. 2012;287:7871–84.
Trager W, Jensen JB. Human malaria parasites in continuous culture. Science. 1976;193:673–5.
Lambros C, Vanderberg JP. Synchronization of Plasmodium falciparum erythrocytic stages in culture. J Parasitol. 1979;65:418–20.
Tosta CE, Sedegah M, Henderson DC, Wedderburn N. Plasmodium yoelii and Plasmodium berghei: isolation of infected erythrocytes from blood by colloidal silica gradient centrifugation. Exp Parasitol. 1980;50:7–15.
Külzer S, Bittl V, Przyborski JM. Fractionation of Plasmodium-infected human red blood cells to study protein trafficking. Methods Mol Biol. 2015;1270:71–80.
BEI/ATCC. The 6th edition of methods in malaria research. 2013. https://www.beiresources.org/portals/2/MR4/Methods_In_Malaria_Research-6th_edition.pdf. Accessed 28 Jan 2020.
Tonkin CJ, van Dooren GG, Spurck TP, Struck NS, Good RT, Handman E, et al. Localization of organellar proteins in Plasmodium falciparum using a novel set of transfection vectors and a new immunofluorescence fixation method. Mol Biochem Parasitol. 2004;137:13–21.
Tougan T, Suzuki Y, Itagaki S, Izuka M, Toya Y, Uchihashi K, et al. An automated haematology analyzer XN-30 distinguishes developmental stages of falciparum malaria parasite cultured in vitro. Malar J. 2018;17:59.
Tougan T, Toya Y, Uchihashi K, Horii T. Application of the automated haematology analyzer XN-30 for discovery and development of anti-malarial drugs. Malar J. 2019;18:8.
Diem K, Lenter C. Scientific tables 565. 7th ed. Basel: Ciba-Geigy Limited; 1970. p. 653–4.
Cooper JA. Effects of cytochalasin and phalloidin on actin. J Cell Biol. 1987;105:1473–8.
Saito S, Watabe S, Ozaki H, Fusetani N, Karaki H. Mycalolide B, a novel actin depolymerizing agent. J Biol Chem. 1994;269:29710–4.
Holzinger A. Jasplakinolide: an actin-specific reagent that promotes actin polymerization. Methods Mol Biol. 2009;586:71–87.
Pollack S, Fleming J. Plasmodium falciparum takes up iron from transferrin. Br J Haematol. 1984;58:289–93.
Abu Bakar N, Klonis N, Hanssen E, Chan C, Tilley L. Digestive-vacuole genesis and endocytic processes in the early intraerythrocytic stages of Plasmodium falciparum. J Cell Sci. 2010;123:441–50.
Brochet M, Billker O. Calcium signalling in malaria parasites. Mol Microbiol. 2016;100:397–408.
Friedman PA, Przysiecki CT. Vitamin K-dependent carboxylation. Int J Biochem. 1987;19:1–7.
Vermeer C. Gamma-carboxyglutamate-containing proteins and the vitamin K-dependent carboxylase. Biochem J. 1990;266:625–36.
Huang M, Rigby AC, Morelli X, Grant MA, Huang G, Furie B, et al. Structural basis of membrane binding by Gla domains of vitamin K-dependent proteins. Nat Struct Biol. 2003;10:751–6.
Föller M, Huber SM, Lang F. Erythrocyte programmed cell death. IUBMB Life. 2008;60:661–8.
Ill CR, Ruoslahti E. Association of thrombin-antithrombin III complex with vitronectin in serum. J Biol Chem. 1985;260:15610–5.
Mitamura T, Hanada K, Ko-Mitamura EP, Nishijima M, Horii T. Serum factors governing intraerythrocytic development and cell cycle progression of Plasmodium falciparum. Parasitol Int. 2000;49:219–29.
Asahi H, Kanazawa T, Hirayama N, Kajihara Y. Investigating serum factors promoting erythrocytic growth of Plasmodium falciparum. Exp Parasitol. 2005;109:7–15.
Dasari P, Heber SD, Beisele M, Torzewski M, Reifenberg K, Orning C, et al. Digestive vacuole of Plasmodium falciparum released during erythrocyte rupture dually activates complement and coagulation. Blood. 2012;119:4301–10.
Furie B, Bing DH, Feldmann RJ, Robison DJ, Burnier JP, Furie BC. Computer-generated models of blood coagulation factor Xa, factor IXa, and thrombin based upon structural homology with other serine proteases. J Biol Chem. 1982;257:3875–82.
Alam A. Serine proteases of malaria parasite Plasmodium falciparum: potential as antimalarial drug targets. Interdiscip Perspect Infect Dis. 2014;2014:453186.
Sharma S, Jadli M, Singh A, Arora K, Malhotra P. A secretory multifunctional serine protease, DegP of Plasmodium falciparum, plays an important role in thermo-oxidative stress, parasite growth and development. FEBS J. 2014;281:1679–99.
Sharma D, Soni R, Patel S, Joshi D, Bhatt TK. In-silico studies on DegP protein of Plasmodium falciparum in search of anti-malarials. J Mol Model. 2016;22:201.
We appreciate the assistance of Mr. Yuji Toya and Dr. Kinya Uchihashi from Sysmex Corporation (Kobe, Japan) in setting up the XN-30 analyser. We also thank Dr. Kazunobu Saito, Ms. Takada, and Dr. Ninomiya of Core Instrumentation Facility (RIMD, Osaka University) for providing assistance with the shotgun LC–MS/MS analysis and Ms. Toshie Ishisaka and Ms. Sawako Itagaki for providing technical assistance.
This research was supported in part by MEXT KAKENHI Grant Numbers JP22700455, JP25460754, and JP16K08759 and by the Sysmex Corporation to TTo and the Global Health Innovative Technology Fund (GHIT) Grant Numbers G2013-105 and G2014-109 to TH.
Ethics approval and consent to participate
All protocols for analysing serum samples of healthy Japanese volunteers were approved by the institutional review board of the Research Institute for Microbial Diseases (RIMD), Osaka University (Approval numbers: 22-3 and 23-1). Informed consent was obtained from all participants and/or their legal guardians. All animal experiments were approved and carried out in accordance with the guidelines of the RIMD, Osaka University (Approval number: Biken-AP-H26-06-0). All methods were carried out in accordance with relevant guidelines and regulations.
Consent for publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Schematic illustration of the two procedures for serum preparation. Fig. S2. Serum proteins in RBCs infected with rodent malarial parasite in vivo. Confocal microscopy images showing the localization of vitamin K-dependent protein S (protein S), prothrombin, and vitronectin (red), and DNA (blue) in the RBCs of mice infected with the rodent malarial parasite Plasmodium yoelii in vivo. All samples were fixed with the methanol fixation method. Primary [anti-protein S pAb, anti-prothrombin pAb, anti-vitronectin pAb, or rabbit IgG antibody (control; Catalogue number: 30000-0-AP from Proteintech, Rosemont, IL, USA)] and secondary (anti-rabbit IgG-Alex Flour594) antibodies were suitably diluted (1:200) and used. Images were captured using a BZ-X710 fluorescence microscope (Keyence, Osaka, Japan). “Rabbit IgG” refers to the isotype control antibody. Arrows and arrowheads indicate the iRBCs and non-iRBCs, respectively. The scale bar represents 5 µm. Fig. S3. Serum proteins in RBCs infected with the CDC1 and W2 strains. (a) CDC1 strain. (b) W2 strain. These strains were cultured under the same conditions as those for the 3D7 strain. (Left panels) Serum proteins in the lysate of iRBCs cultured in NCS- or PDS-containing medium. Samples were collected using the precipitation method. (Right panels) Serum proteins in NCS and PDS. The asterisk indicates the putative degradation product. Fig. S4. Confirmation of the generation of Factor Xa for coagulation. Western blotting analysis of Factor Xa, the activated form of Factor X. No signal corresponding to Factor Xa (estimated molecular weight of approximately 28.5 kDa) was detected by anti-Factor Xa pAb (ab111171; Abcam) even when the blot was overexposed. The intensity of the image of Factor X shown in Fig. 5c (i) has been increased. The asterisk indicates the putative degradation product.
